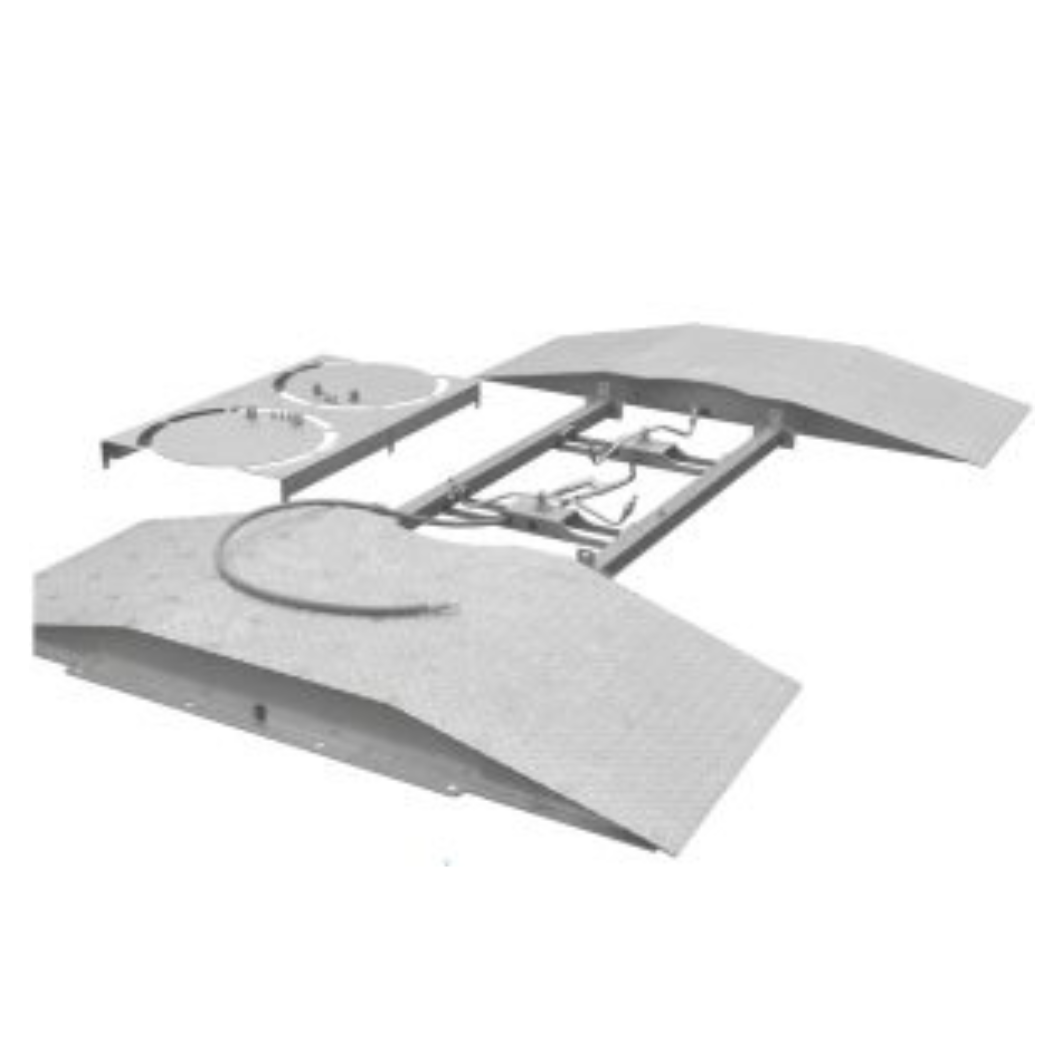

Mosmatic’s Undercarriage Cleaning Ramp uses a powerful cyclonic action to blast dirt, mud, and contaminants from the underbody and wheels.
The low profile and robust design make it suitable for loaded vehicles and heavy machinery as part of your routine cleaning or within a bio-security setting.
*This system requires a high volume and pressure pump.
The ramp is available with and without wheel blasting cannons. See product PDF in tab below for details.
Technical Details:
Pressure: 1000psi (7 MPa)
Temperature: 120°C
Water connection to ramp: 3/8″ NPTM
Water connection to WBM: 4 x 3/8″ NPTF
Throughput medium: pH 3–12
Minimum ground clearance: 4.8″
