|Dimensions||20.00 × 20.00 × 5.00 cm|

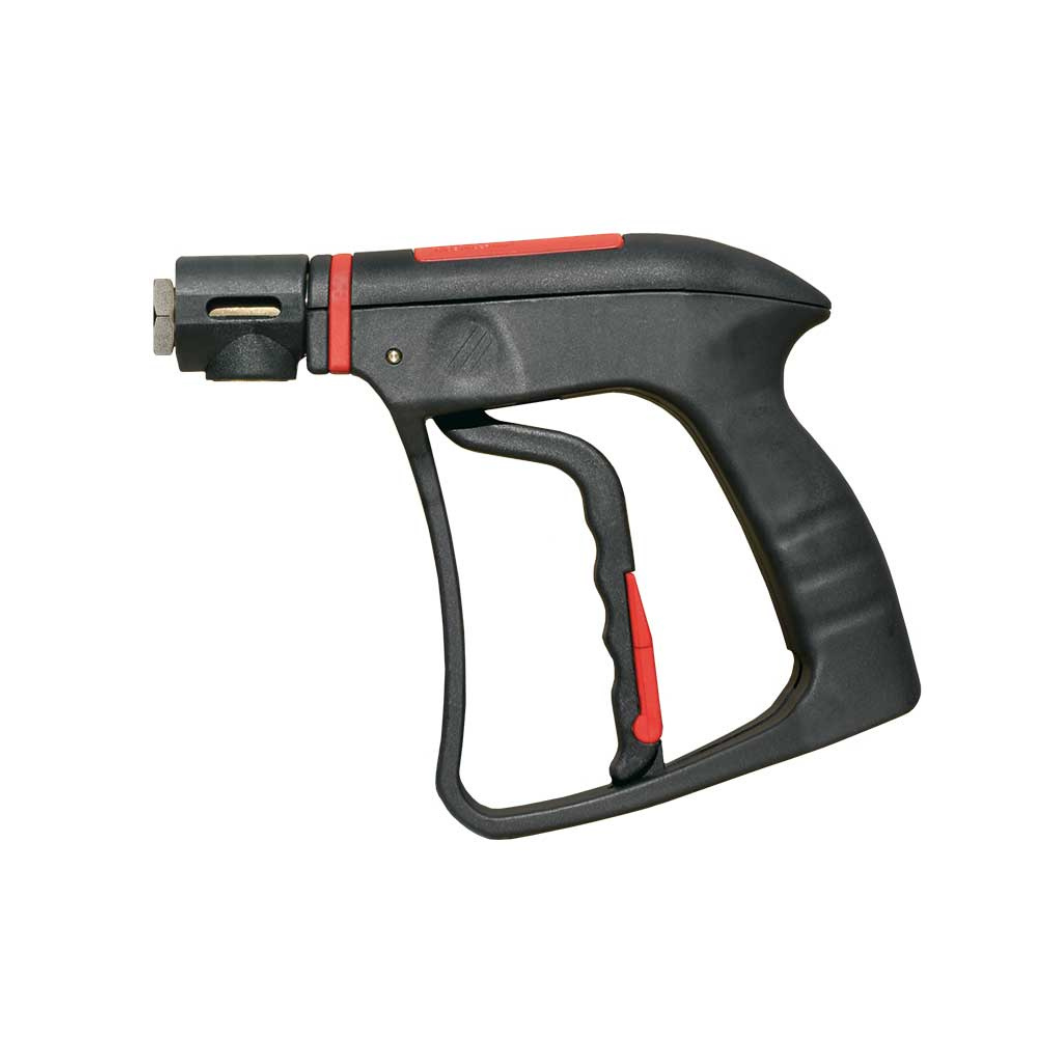

The Suttner ST860D is a medium duty front entry & front exit gun designed to be used with steam. The exit port is encased with a plastic housing for added safety & protection. Copolymer valve sealing is suitable for chemical and water mixes, plus mineral oils, inorganic acids, alkaline solutions, alcohol and seawater.
Max 210Bar, 30Lpm, 80°C
Inlet:1/4″ F, Outlet:1/4″ F
Opening Force: 38N @ 100 bar, Holding Force: 20N @ 100 bar
